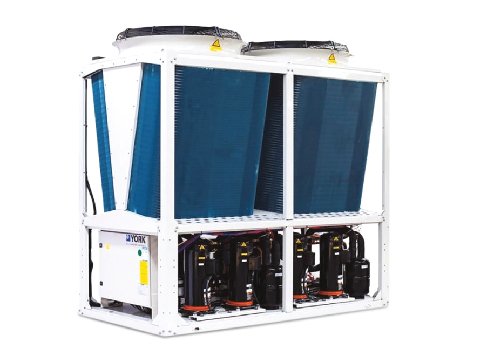

YCAE X Air - Cooled Scroll Chiller

Range 12TR to 37TR

Efficient design:

A parallel design with compressors: When a compressor operates, the heat exchange area of the air-side heat Exchanger and the water-side heat exchanger can be fully utilized, to effectively improve unit performance, especially the part-load performance

A design with two refrigerant systems and an independent air duct: The two refrigerant systems within a single module can easily achieve independent operation, lowering the fan's power consumption at part-load for improved performance

Multi-level energy regulation: Up to 32 units can be connected together with a wider range of energy regulation (as much as 128 levels), which is close to stepless regulation, have a higher efficiency and a better performance in saving energy

Reliable operation:

Tested by the Highly Accelerating Lifecycle Testing Lab: Each model of the YCAE-X series has been tested in the Highly Accelerating Lifecycle Testing Lab. This test simulates various extremely harsh conditions encountered by the units under various weather conditions (e.g. wind, snow, rain, and frost). The entire year's operating conditions are simulated during a period of 2-4 weeks to ensure the reliable operation of the units in the field

The air-side heat exchanger:
Unique U-shaped heat exchanger, multi-side heat transfer, and optimized wind field

Standard hydrophilic aluminum foil fins: for strong anti-oxidation and corrosion-resistance performance

Efficient stainless steel plate heat exchanger: The stainless steel structure provides stability and reliability; the asymmetric flow field design lowers the pressure drop on the water side and improves the antifreeze performance

Electronic expansion valve: The 480-step high precision electronic expansion valves are used to make intelligent adjustments to the flow of the refrigerant, ensuring that the refrigerant flow is precise, and the unit's operation pressure and temperature are optimal

Filter & water flow switch:
The copper filter is standard to prevent dirt from entering the system, which prevents clogging

Provide water flow switch as standard to prevent the unit from being froze-cracked due to poor water flow
