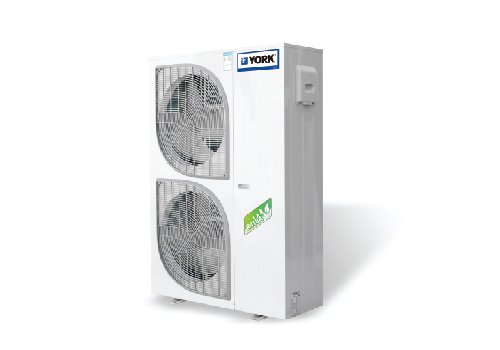

YVAG Air-Cooled DC Inverter Scroll Chiller (with Inbuilt Pump & Expansion Tank)
Range 3TR to 12TR
High efficiency:
Part-load performances meet the highest efficiency values and deliver performance beyond typical efficiency levels in cooling and heating. It uses a high-efficiency DC inverter compressor together with advanced variable frequency drive technology. Compressor frequency range goes from 15-120 percent to quickly and efficiently meet the needs of building or process load changes. It uses dual fans equipped with high-efficiency, low-noise DC inverter motor which adjusts the air flow to exactly match the capacity in a more accurate and efficient way.
Easy installation and operation:
Modular concept: The small packaged YORK YVAG heat pump comes as standard with a hydronic loop circulating pump, expansion tank, water flow switch, safety valve, fill valve, and wye strainer, saving space in the room and making installations easy and fast. The units are designed for modular installations (up to four module combinations among all the models). This permits installed capacities from 11.2-160kW.
Perfect comfort in a wide operating range: Wide operating envelope with lower sound levels. With its wide operating range, the YORK YVAG is perfect for all climates. It does not matter if the ambient temperature in summer is 48°C or if in winter is -27°C, as the unit will maintain the efficiency in stable operation. With heating outlet water temperatures up to 58°C, the unit is perfect for radiant panels.
Optimized for low sound: Thanks to the component design, the unit's sound emissions are as low as 51 dB(A) Sound Pressure at full load, reducing to as low as 40 dB(A) at part-load operation.
Take SMART control of your spaces:
Get SMART control of your environment with the YORK YVAG system.
The highly sensitive T8610 intelligent thermostat closely. monitors the actual and target temperatures of every room, instantly communicating requirements and load changes to the system and gathering data on usage requirements over time.
The YORK YVAG system adaptively adjusts the water temperature, compressor, and water pump running state In accordance with indoor and outdoor load changes. The results? More comfortable temperatures and humidity levels as well as annual operating costs that can be reduced by up to 18 percent.
